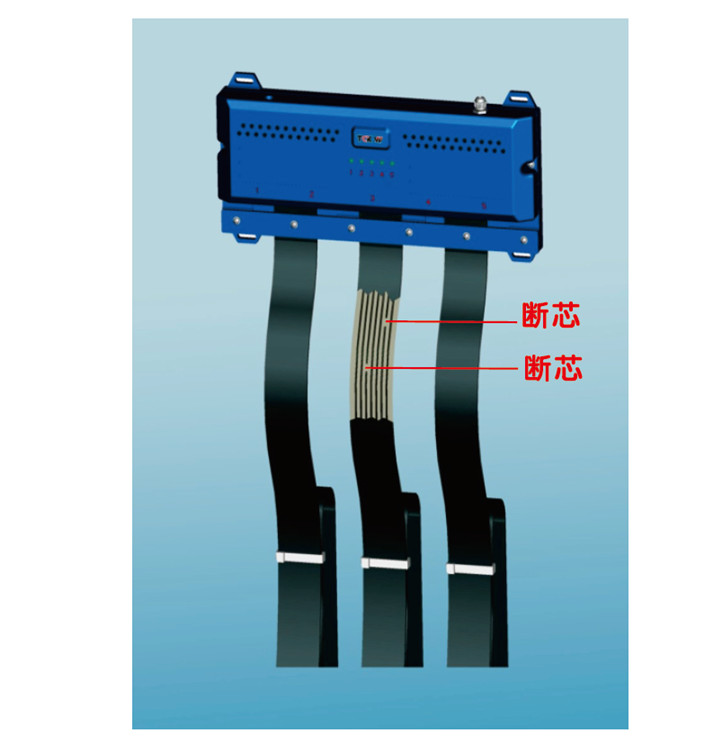

Elevator Traction Belt Broken Cord Monitoring Device

Elevator Traction Belt Broken Cord Monitoring Device

1. The safe operation of wire rope is always in a completely controlled monitoring state.
2. The inspection is completed during production, thus leading the two processes of production and inspection combined into one, effectively improving the utilization rate of equipment.
3. It can reduce energy consumption of the equipment used for wire rope detection, save energy and reduce consumption significantly;
4. It can scientifically extend the service life of wire rope and reduce the cost of wire rope.

who I am——Elevator Traction Belt Broken Cord Monitoring Device


What can I do-——It can inspect all kinds of wire rope flaws such as internal, external broken wire, abrasion, corrosion, deformation, fatigue etc.

Technical Parameter

-Specification/model: TCK.W-GDAJ model

-Application traction belt width: 30-60mm

-Applicable steel core number: 10-30 pieces

-Steel core diameter range: ≤2mm

-Traction belt number under synchronized monitoring: 1-5 pieces

-Device working environment: temperature -20℃-50℃


-Broken core detectability:100%

-Device power supply: DC24V

-Power: ≤15W

-Alarm mode:Sound and light alarm

-Technical expansion: can be customized as per client’s requirement
